PIC Programmer-Software







ProgPIC



for PIC16C84, PIC16F84, PIC16F87x













ProgPIC2



programs Flash-, Eprom and Otp-Devices.
PIC16C84,PIC16F84, PIC16F87x, PIC16F62x and more.
New PICs with the same programming algorithm can be added in the INI-File.

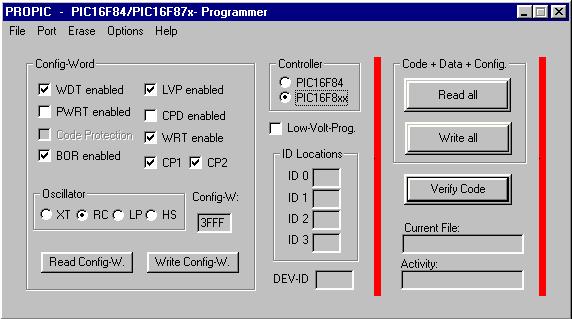

ProgPIC - PIC16F84 / PIC16F87x programmer software

Features:

·  For Win95/98/NT/2000/ME/XP

·  Programs PIC16F84, PIC16F87x

·  In-system programming

·  Connects via parallel- or com-port, many circuits available

·  Low voltage programming possible

·  Write, readback and verify Flash- and EEProm-Memory

·  Loads files with Intel Format

·  Freeware for non-commercial use



ProgPIC - Version V2.6



HW connection PC-->controller :

Parallelport adaptors (Win95/98/NT):

For direct access to the parallelport under WIN-NT the I/O Driver DLPORTIO is required.

Com-Port (Win95/98/NT/2000/ME/XP)
(no Run mode is available. The programmer must be disconnected to check the hex file,
"low voltage programming" is not possible),

Microchip's AN589 programmer (Win95/98/NT):

The PC parallelport must be set to “SPP“ (standard parallelport, bios).



DISCLAIMER:

I do not accept any responsibility for damage resulting from building or operation of ProgPIC and the interface circuits. In no event the author will be liable to you for damages.

ProgPIC is free for non-commercial use.

Download Programmer "ProgPIC" ("Progpic.zip"  version V2.6, Dec. 2002)

Download Adaptor Test Program
