TSUNAMI 10 - Servicepage

Download PC-Setupprogram for Tsunami10 (V20 for both versions, April 9th 2005)

This program is helpful to change setup values in a convenient way and download software updates to the ESC.
Schematic of the setup-cable is included.

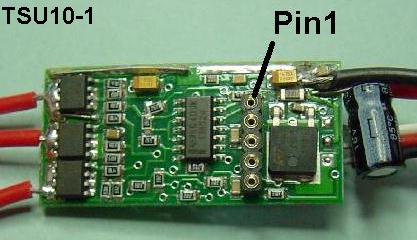

Download Update for TSU10-1 (first generation, the big one)

V2008:

• Overtemperatur cut-off is increased now
• Improved startup procedure
• some bugs fixed regarding to rpm-control and undervoltage cut-off

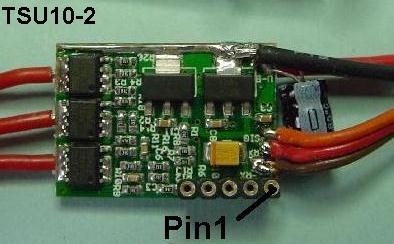

Download Update for TSU10-2 (second generation)

V2105:

• Improved startup procedure
• bug fixed regarding to rpm-control

V2107:

• bug fixed: speed limitation became sometimes active at 580Hz

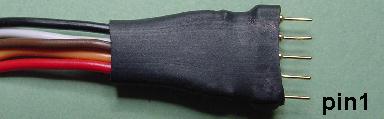

HET cable:

Attention!
Differences between setup for TSU10-1 and TSU10-2:

TSU10-1:

mode1: test mode
mode2: gliders
mode3: motor models
mode4: helicopters
mode5: contest mode

TSU10-2:

mode1: gliders
mode2: motor models
mode3: helicopters
mode4: contest mode

NO WARRANTY:
There is no warranty or guarantee of the accuracy of the material on this Website.
Connecting PC and ESC by a selfmade cable may destroy the serial port of the pc or may damage the speed controller.
ESD can destroy I/O ports of the microcontroller. Please avoid ESD and handle all parts with care.
Update's and setup's must be done at the user's own risk.

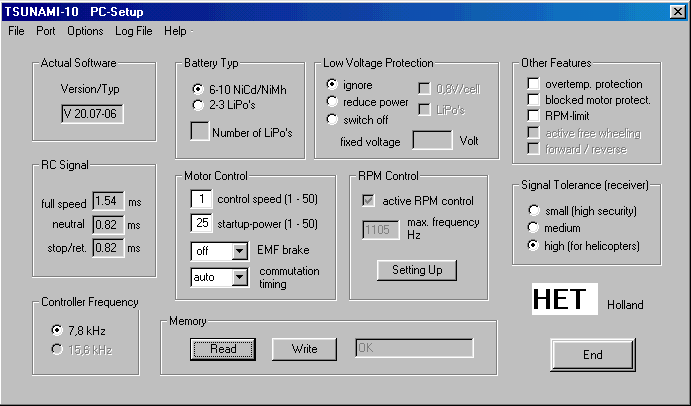

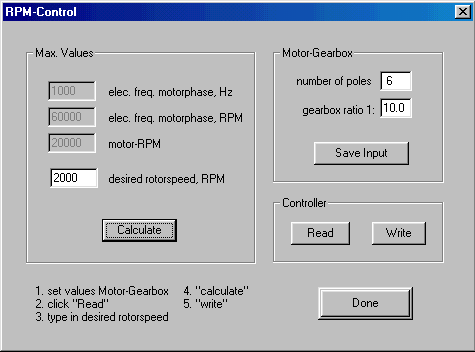

Some screenshoots
